MAIN FEATURES:

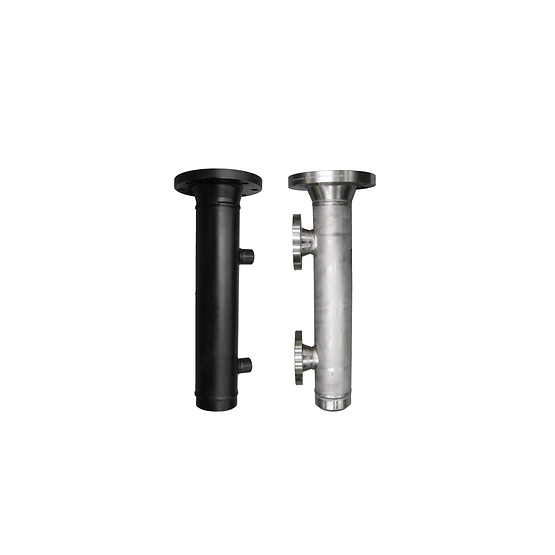

This bypass chamber is designed for use with level transmitters, providing a reliable solution for level measurement in challenging process conditions such as turbulence and foam. By isolating the measuring instrument from difficult tank environments, it ensures optimal installation conditions for accurate and repeatable readings.
Design Features
Available as all-in-one solution with the guided radar, and the displacer level transmitter
Thermal insulation for high/low temperatures, electric heat tracing, heat protective enclosure
PED/EN 13445, ASME B31.1, ASME B31.3, NACE
General information
| Product type | Level indicator |
| Product positioning | For FMCW radars, TDR guided radars and displacer level transmitters |
| Interface measurement | Yes |
| Measured media | Liquids |
Materials
| Gaskets | Aramid, Graphite, Polytetrafluoroethylene (PTFE), Titanium coated with ECTFE (Ethylene ChloroTriFluoroEthylene), 316L/graphite (spiral-wound) |
| Wetted parts | Austenitic stainless steel (316L), Austenitic stainless steel (304L), Nickel-chrome-molybdenum-tungsten alloy (Alloy C276), Nickel-chromium-molybdenum-niobium (Alloy 625) |
Process connections
| Flange connections | EN (1092-1): DN15…50 ASME (B 16.5): ½…2″ |
| Thread connections | Male: G½ ½ NPT |
Typical applications
General
- For installation of level transmitters in difficult process conditions (e.g. turbulence or foam)
- Condensate tanks, catalytic reformers, column reboilers, fuel storage tanks, distillation columns, crackers, boiler blowdown tanks, feedwater heaters, flash tanks, steam generators, reflush and reflux drums, steam drums etc.
