MAIN FEATURES:

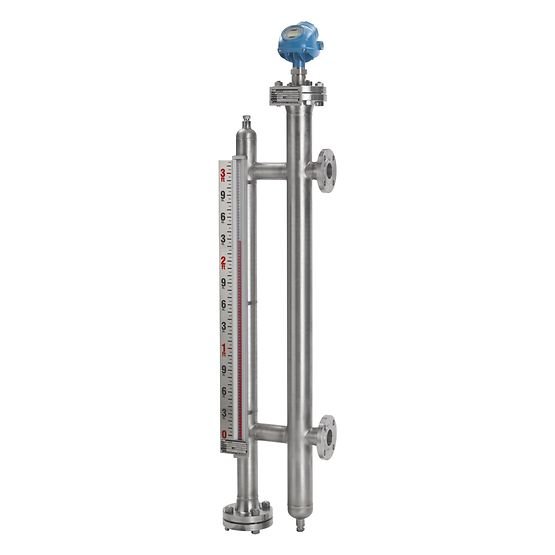

A cost-effective magnetic level indicator designed for continuous level measurement in basic liquid applications. It provides reliable, local indication without the need for external power, making it ideal for water storage tanks, condensate receivers, and wash or surge tanks handling fuels, lubricants, additives, and similar chemicals. Constructed with durable materials, it offers dependable performance with minimal maintenance requirements. Its simple, float-operated magnetic coupling principle ensures accurate readings even in turbulent or dirty service conditions. Suitable for both atmospheric and pressurized vessels, this versatile gauge combines economy with robust functionality for demanding industrial environments.
Design Features
Best price/performance ratio
Rugged metallic design
Easy to install, safe and no commissioning
Flaps housed in hermetically sealed glass tube (IP68)
Highly visible level indication works without power supply
Optional Plexiglas® anti-icing indication
Available with optional reed switches (3-wire, NAMUR) or reed-chain level transmitter (4…20 mA/HART®7, FF, PA output)
General information
| Product type | Level indicator |
| Product name | MLG |
| Product positioning | For basic liquid applications |
| Measurement principle | Float |
| Level measurement type | Continuous measurement |
| Contact to measured medium | Yes |
| Interface measurement | No |
| Redundancy | No |
| Measured media | Liquids |
| Measuring range (liquids) | 0.3…5.5 m/ 1…18 ft (other on request) |
| Measuring point | Bypass |
Operating conditions
| Process pressure | -1…40 barg/ -14.5…580 psig |
| Process temperature | -70…+200°C/ -94…+392°F |
Materials
| Gaskets | Aramid, Graphite, Polytetrafluoroethylene (PTFE) |
| Wetted parts | Austenitic stainless steel (1.4404/316L), Titanium |
Process connections
| Flange connections | EN (1092-1): DN15…50 ASME (B 16.5): ½…2″ |
| Thread connections | Male: G½, G¾ ½ NPT, ¾ NPT |
| Weld-in connections | ½”, ¾” |
Approvals/Standards
| Certificates/Approvals Others | NACE, PED/EN 13445 |
| Certificates/Approvals Ex | ATEX, IECEx |
| Ingress protection | IP68 |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA |
Accuracy
| Accuracy (liquids) | ±10 mm/ 0.39 in (optional: ±5 mm / 0.2 in with LT40) |
Typical applications
General
- Water storage tanks
- Condensate receiver tanks and condensate hot wells
- Mill water storage tanks
- Fuel tanks
- Vessels for lubrication oil and other hydraulic fluids
- Skids
- Metallic tank manufacturers
