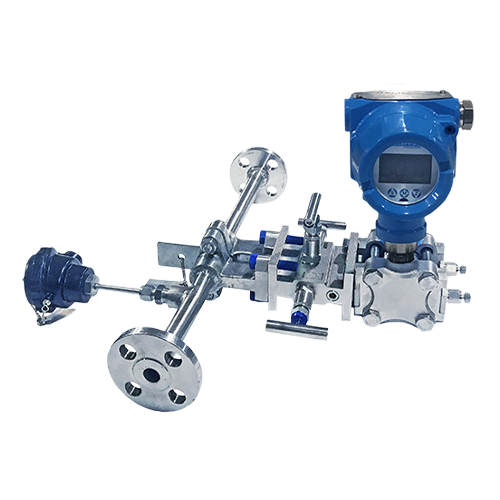

Integrated Orifice Plate embodies the elegant evolution of flow measurement. It seamlessly combines the orifice plate, differential pressure/pressure/temperature sensors, and a smart transmitter into a single, compact unit. This design eliminates external impulse lines, directly providing digital, temperature/pressure-compensated flow data. It represents a perfect synergy of mechanical precision and intelligent electronics, offering superior accuracy, reliability, and a simplified installation.
Features
Accuracy: ±1.5% of rate; ±1.0% of rate; ±0.5% of rate; ±0.25% of rate
Body material: Duplex 2205, 304, or 316 stainless steel, Hastelloy C-276, 254, SMO, carbon steels; Special materials on request.
Calibration: Calibrated for customer application
Fitting Type: Flanged, threaded, hub or weld-end standard; Others on request.
Head Loss: Varies with beta ratio and DP
Installation Requirement: Upstream 10D, Upstream 5D
Line size: 0.5 to 2″ or larger
Pressure Range: Up to 20,000 psi (1,380 bar)
Repeatability: ±0.1%
Standard Beta Ratios: 0.15 to 0.80, special betas available
Temperature Range: up to 752 °F (400 °C)
