MAIN FEATURES:

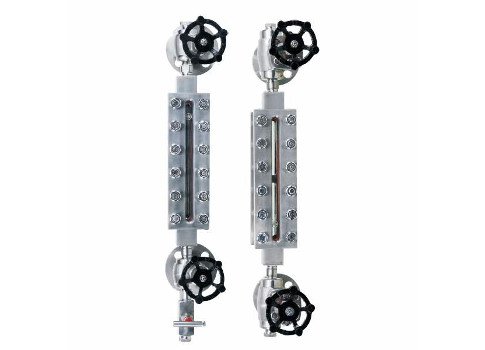

Reflex level gauge is as known as reflex glass level gauge and prismatic level gauge. Reflex level gauges are commonly used for level detection within a vessel, and the primary principle is based on the difference in refractive indices of vapor and liquid. Compared with transparent level gauge, reflex level gauge can display the liquid level more clearly without the aid of auxiliary light source.
Reflex level gauge’s core components are one or several reflex gauge glasses. One of its surfaces has grooves with section angle of 90 ° which is installed towards the chamber. The upper part of the chamber is filled with gas and the lower part is filled with liquid when the liquid level gauge is working, liquid level is clearly observed by different brightness of the glass in the liquid and in the gas/vapor zone.
To avoid leakage in case of glass breakage, safety ball-check device is usually provided in cross-fittings or shut-off valves.
Reflex glass level gauges can be used in most of the cases and offer great advantages in terms of: low initial cost, low operating cost, easy level reading, no need power supply.
Design Features
Easy to instal, cost-effective
Direct view of the fluid level
More economic solution for fluid level checking
Different refraction behavior with liquid and gas
Easy maintenance and very long service life
Suitable for steam media up to 40 bar and process media up to 400 bar
Main Technical Data
| Model | Reflex Level Gauge | Transparent Level Gauge |
| Body Material | Carbon SteelTitanium alloyStainless Steel 304/316L | Carbon SteelTitanium alloyStainless Steel 304/316L |
| Center to Center Length | 300-3600mm | 300-3600mm |
| Visible Length | 95-3360mm | 95-3360mm |
| Glass Material | BorosilicateglassAluminosilicate glass | BorosilicateglassAluminosilicate glass |
| Gasket | Compressed fiber gasketGraphite gasketPTFE gasket | Compressed fiber gasketGraphite gasketPTFE gasket |
| Mica Shield | N/A | YES |
| Working temperature | ≤450°C | ≤450°C |
| Working Pressure | 40bar | 100bar |
| Connection Tytpe | Flange/Screw | Flange/Screw |
| IlluminationSystem | According to request | According to request |
| Frost Extension | According to request | According to request |
| Connection Layout | Side-Side/Side-bottom | Side-Side/Side-bottom |
Typical applications
General
- Boiler Water Monitoring: Used to manage water levels in high-pressure steam boilers.
- Chemical and Petrochemical Processing: Monitoring levels in storage tanks, reaction vessels, and containers holding corrosive or hazardous chemicals.
- Oil & Gas Storage and Transportation: Used to measure levels in oil tanks, refineries, and pipelines.
- Power Generation Systems: Employed to manage feed water tanks and other high-temperature, high-pressure vessels.
- Pharmaceutical and Food Processing: Used to monitor clean, liquid-level applications.
